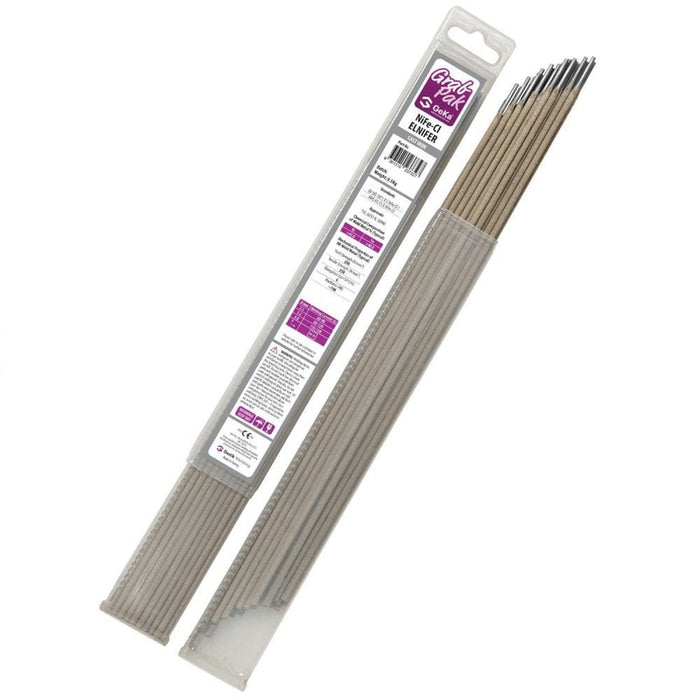

GrabPak Cast Iron Electrodes 0.5kg

Features and Applications

Welding of grey cast iron, temper cast iron

Joint welding of cast iron with hard-to- weld steels or cast parts

Ni-Fe cored stick electrode

Welding in short passes, and hammering the bead of each pass through gentle strikes is required

Standards

TS 9463 / EN ISO 1071 E C NiFe CI 1

AWS A5.15 - E NiFe-CI

Current Type D.C.(+)

Chemical Composition of Weld Metal % (Typical)

Fe         Ni

>40.0 >45.0

Mechanical Properties

Yield Strength

(N/mm2)

200

Tensile Strength

(N/mm2)

350

Elongation

(Lo=5do)(%)

6

Hardness

(HB)

190
