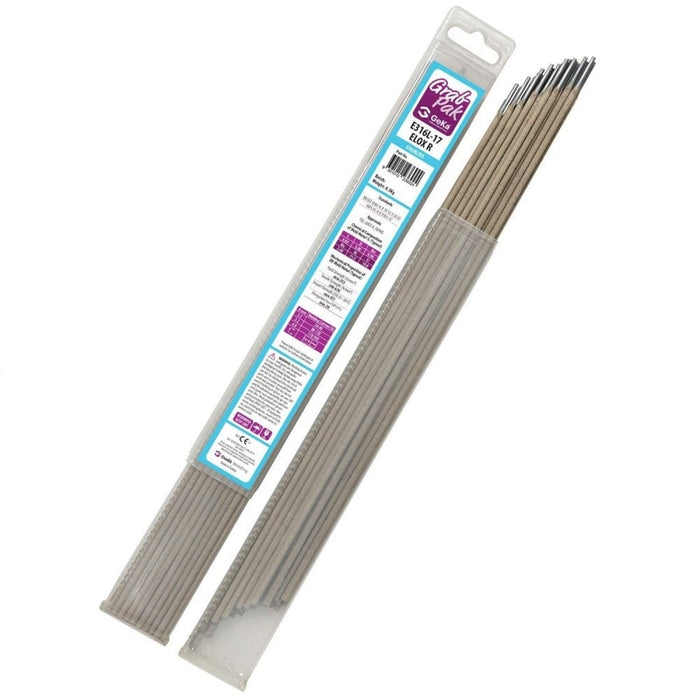

GrabPak 316L Electrodes 0.5kg

Features and Applications

Rutile coated low carbon electrode for use in tanks, pipes and equipment’s made of Cr-Ni-Mo low carbon steels which are used in food, textile, chemical and paint industries

Weld metal is resistant to acid corrosion

Serviceability at temperatures up to 400°C

Requirement of re-drying for min. 2 hours at temperatures between 120°C-200°C

Typical Base Material Grades

EN: X10CrNiMoNb 18 12, X2CrNiMo 18 14 3, X5CrNiMo 17 13 3, X2CrNiMo 17 13 2, X2CrNiMoN 17 12 2, X5CrNiMo 17 12 2, X5CrNiMoTi 17 12 2, X6CrNiMoNb 17 12 2, X2CrNiMoN 17 13 3.

AISI: 316Cb, 316, 316L, 316Ti

Standards

EN ISO 3581-A - E 19 12 3 L R 32

AWS A5.4 - E 316L-17

Current Type D.C. (+) / A.C.

Chemical Composition of Weld Metal % (Typical)

C Si Mn Mo Ni Cr

0.03 0.8 0.9 2.6    11.5 19.0

Yield Strength

(N/mm2)

Min. 355

Tensile Strength

(N/mm2)

540 - 670

Impact Strength

(ISO-V/+20ºC)

min. 47J

Elongation

(Lo=5do)(%)

min. 30
